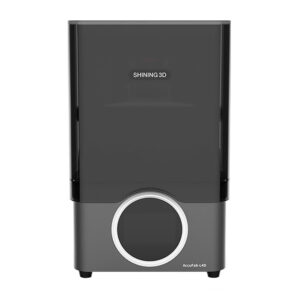

AccuFab L4D Dental 3D Printer 3D Dental Printers

The AccuFab-L4D/L4K’s high fidelity of print result brings extraordinary digital dentistry workflow from intraoral scanning to rapid 3D printing.

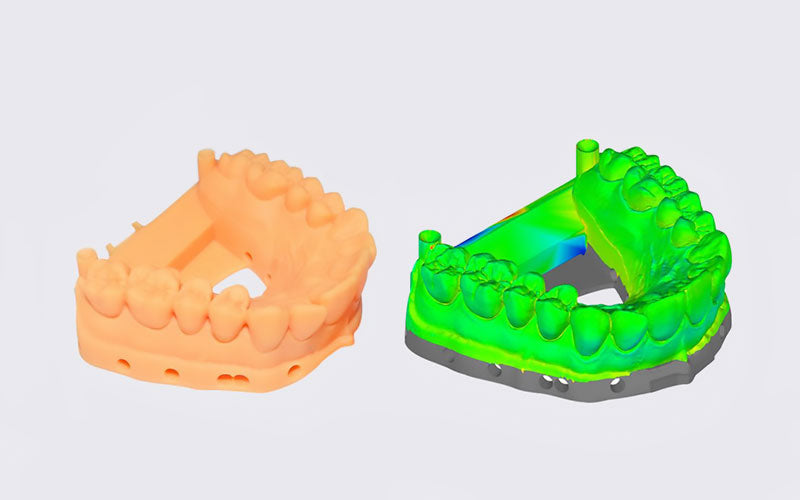

• Unparalleled Accuracy



  Accurate Precise
  Over 96% of the surface points fits within ±0.1mm

  Outstanding Uniformity
  High luminance uniformity achieves up to 90%

  Beyond the Limits
  Provides not only the possibility to obtain features smaller than a pixel, but also superior surface finish.

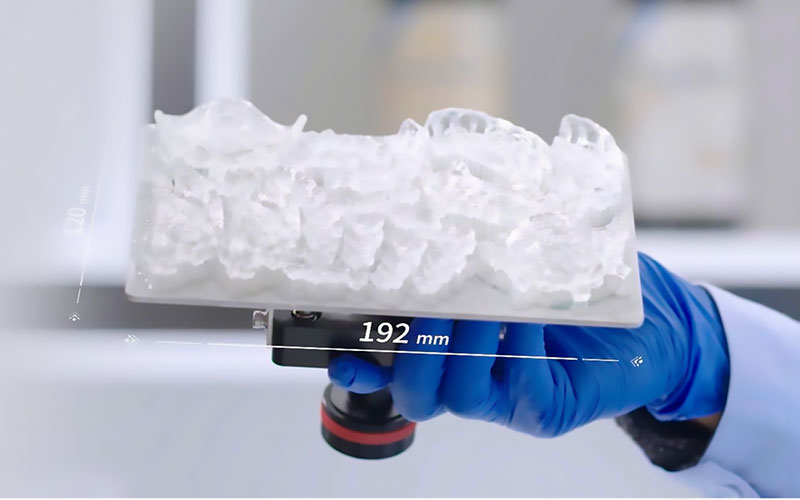

  Large Print Size, 4K Resolution
  192*120mm printing size and 4K resolution satisfy the demands of users for efficiency and details.

  Reliable Performance



  Industrial Grade Optical
  High quality optical module with long-life components

  State-of-the-Art Robustness
  AccuFab-L4D/L4K’s 5 million layers tested in real dental clinic condition provides state-of-the-art reliability.

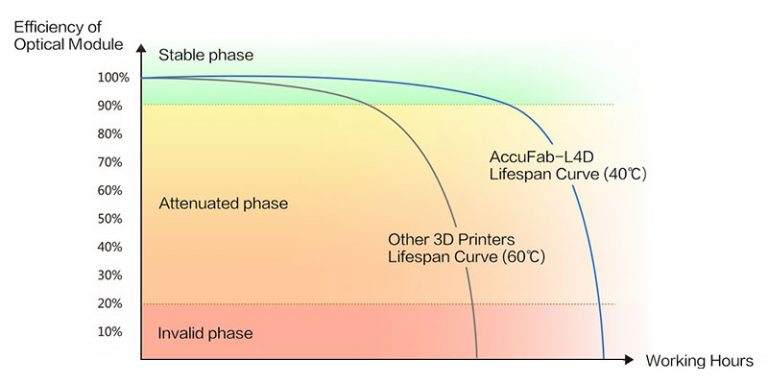

  District Cooling System
  DCS (District cooling system) maintains the temperature of working screen under 40℃, while extending the 3D printer lifespan significantly.

  Technical Specifications

  Resolution	3840*2400
  Pixel Size	0.05 mm
  Wavelength	405 nm
  Light Intensity	3 mw/cm^2
  Print Volume (W x D x H)	192*120*180 mm
  Print Speed	10~50 mm/h * Print speed varies on materials and layer thickness
  Print Accuracy*	±0.05 mm
  Layer Thickness	0.025/0.05/0.075/0.1 mm
  Printer Dimensions	360*360*530 mm
  Weight	19 kg
  Power Requirements	110-240 VAC 50/60 Hz 360 W
  Connectivity	USB dongle, Wi-Fi, Ethernet
  Packing Dimensions	480*480*660 mm
  Packing Weight	25 kg
